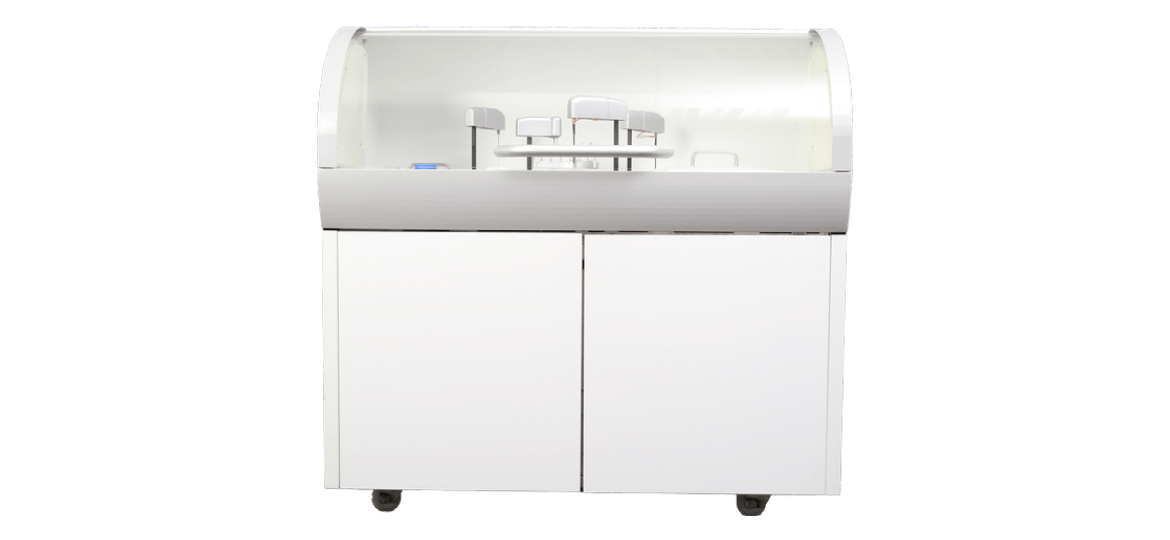

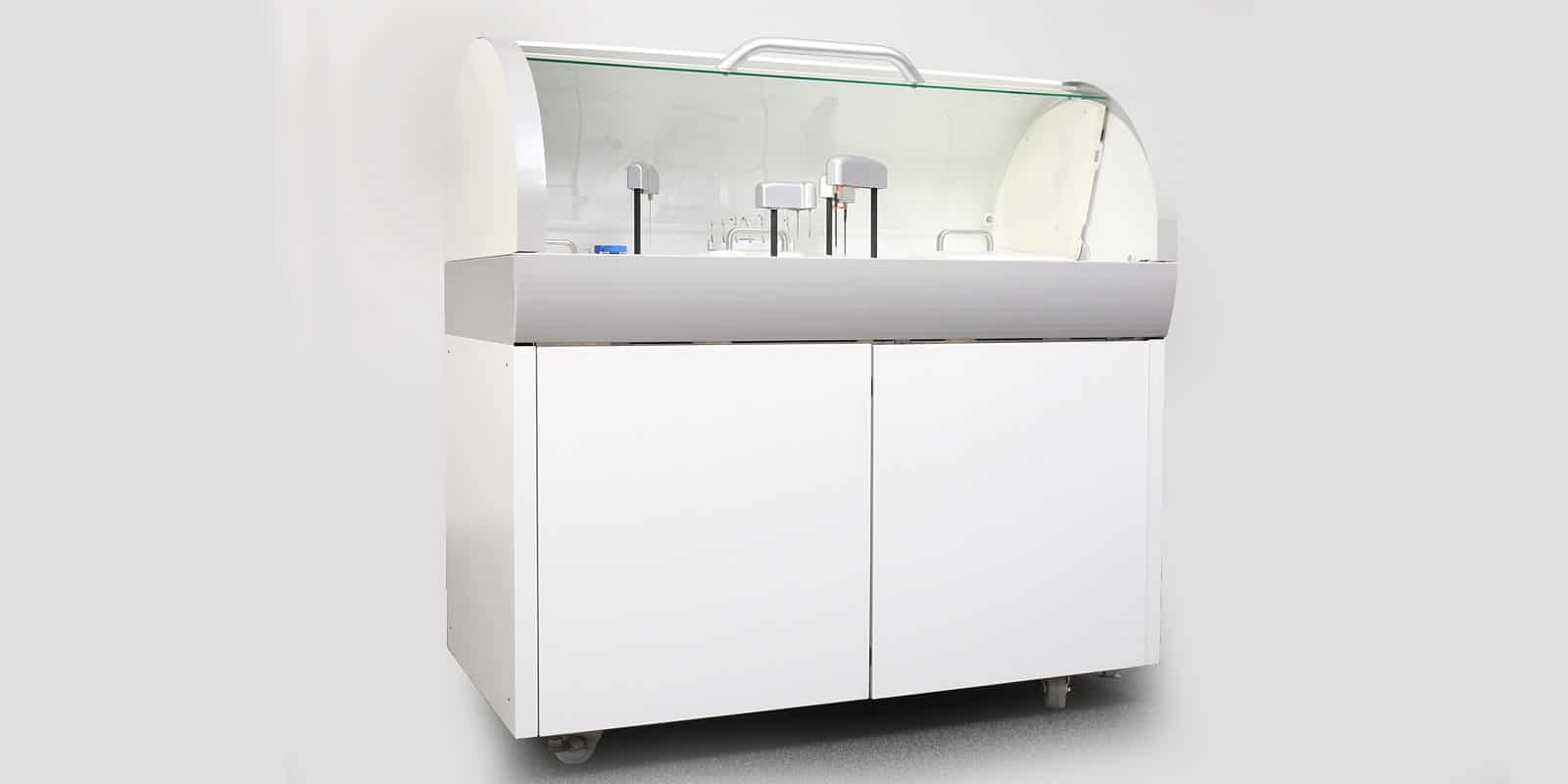

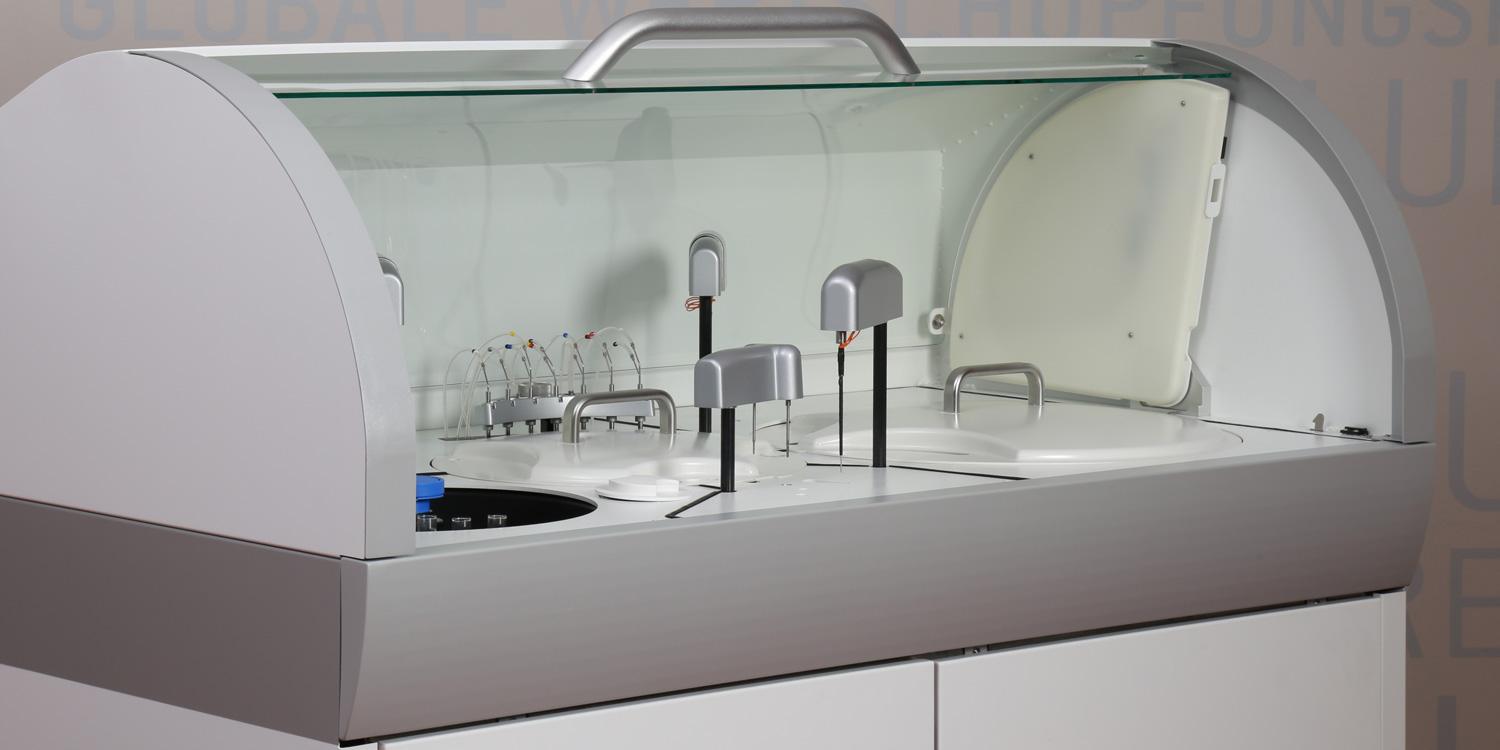

BIT SMART ChemLab

What is this instrument?

The BIT SMART ChemLab is an automated clinical chemistry analyzer intended for the medium throughput market segment with a throughput of 400 tests/hour respectively 600 tests/hour with ISE module.

It is a technical platform developed by BIT which can be used to build clinical chemistry analyzers for our clients.

The BIT SMART ChemLab is an automated clinical chemistry analyzer platform.
info board
Device Type
Clinical Chemistry Analyzer, Instrumentation platform for multiple uses
Application Area
Clinical Chemistry
Role of BIT
Product Development and Maintenance, Manufacturing, After-Sales Service
Which market does it address?

The intended use of the BIT SMART ChemLab is clinical chemistry analysis and homogenous immunoassay testing in human medical practices and laboratories.

Test requests take place through the user interface on an external PC which is connected to the BIT SMART ChemLab through a USB port. Reagents and samples are automatically pipetted and results are measured photometric at wavelengths ranging from 340 to 800 nm.

For the medium throughput market segment with a throughput of 400-600 tests/hour.
What you should know about the BIT SMART ChemLab?

The software and architecture is designed as an open system which makes it quite easy to apply new tests/assays.

For the design of this machine, we used platform components with a proven reliability track record like optics, the general module board, main board, dilutor and robotic arms.

This makes the BIT SMART ChemLab a very robust device at competitive costs.

The software and architecture is designed as an open system which makes it easy to apply new tests or assays.
Technical Specifications
Test Principles Clinical Chemistry
Measurement Methods Photometric, Turbidimetric
Optics Absorbance: 340, 380, 405, 450, 480, 508, 546, 570, 600, 6650, 700, 800nm
Sample Types Serum, Plasma, Urine, CSF, Full Blood
Sample Cup Yes (50µL dead volume)
Sample Capacity Sample rotor/80 samples
Sample Volume 2-140µl
Reagent Capacity Up to 50 refrigerated positions
Reagent Type 100% Liquid ready-to-use
The BIT SMART ChemLab offers a platform for our clients that is both very robust and can be offered at competitive costs.
This BIT SMART platform approach offers our clients the opportunity for an expedited product market entry based on proven components and methods.
Are you working on a new diagnostic device? Let’s discuss how to help you develop it faster, accelerate the regulatory process and increase your margin.
